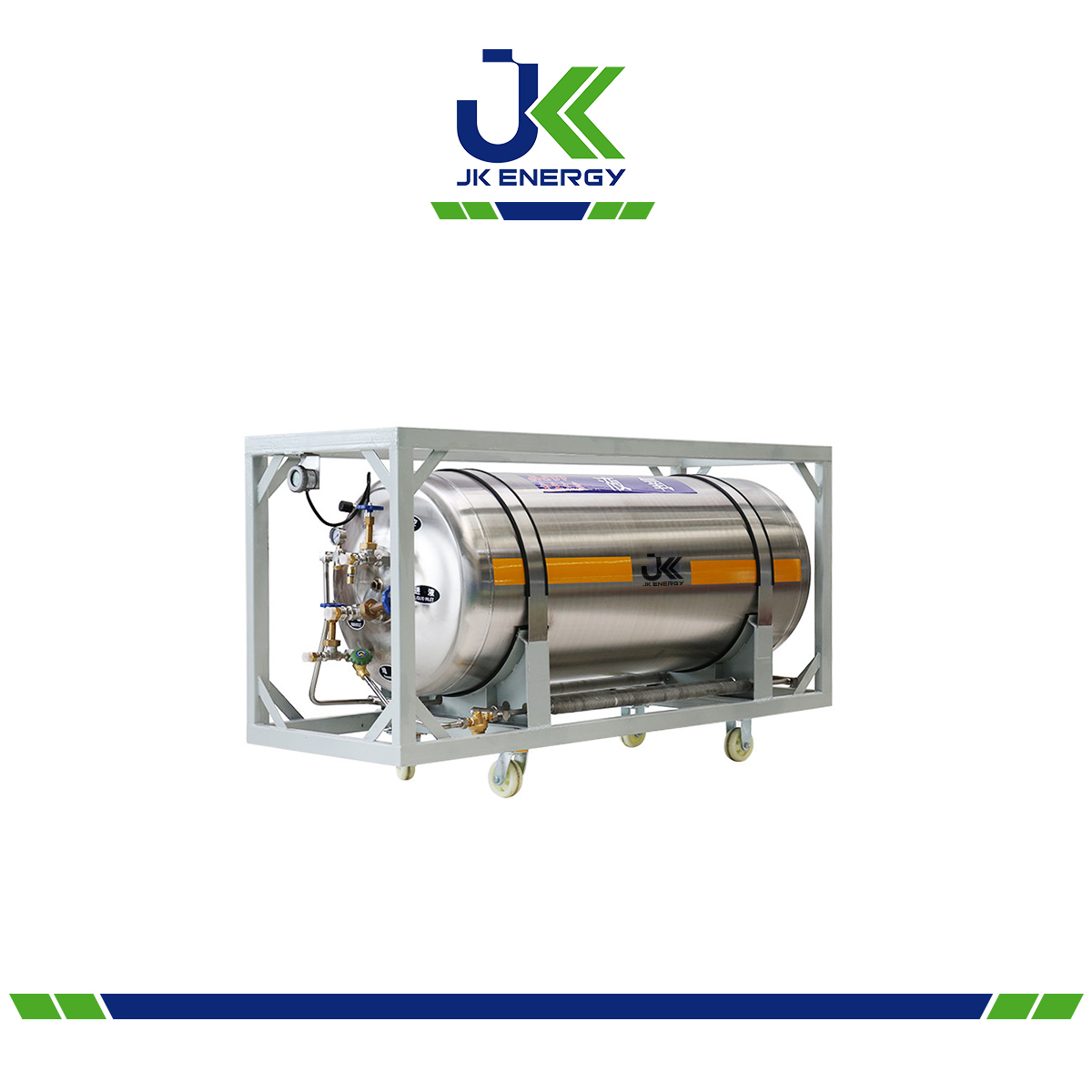

Horizontal Cryogenic LNG Storage Tank Container Dewar Cylinder

Medium:LNG
Working Pressure(MPa):1.44
Maximum filling weight:LNG(191kg)
Empty weight(kg):338
Level gauge:Capacitance
Size(mm):2045×770×1030
  • Horizontal Cryogenic LNG Storage Tank Container Dewar Cylinder
Description
Dewar tank is designed as a high-vacuum multi-layer winding thermal insulation structure. The inner tank is used to store low-temperature liquids. The outer wall is wrapped with multi-layer thermal insulation materials, which has super thermal insulation performance.
Dewar tank is designed for storage, transport and use of liquid oxygen, liquid nitrogen, liquid argon or liquid carbon dioxide. The Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
The cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG etc.
Equip the vaporizer inside,provide 10m3/h continuous gas supply;
Adopt the international standard connectors, all valves are imported brands;
We can customize according to the customers;
Damping ring design to make sure the transportation safely;
Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy /research/fish-farming,etc.

Type:DPL650-499-1.44

Medium:LNG

volume(L):499

Effective volume(L):449

Size(mm):2045×770×1030

Working Pressure(MPa):1.44

Set pressure of main safety value(MPa):1.72

Set pressure of bursting discset(MPa):2.41

Empty weight(kg):338

Maximum filling weight:LNG(kg)191

Level gauge:Capacitance

The base style:Frame style
More Product or Size,please contact us for Inquiry!
